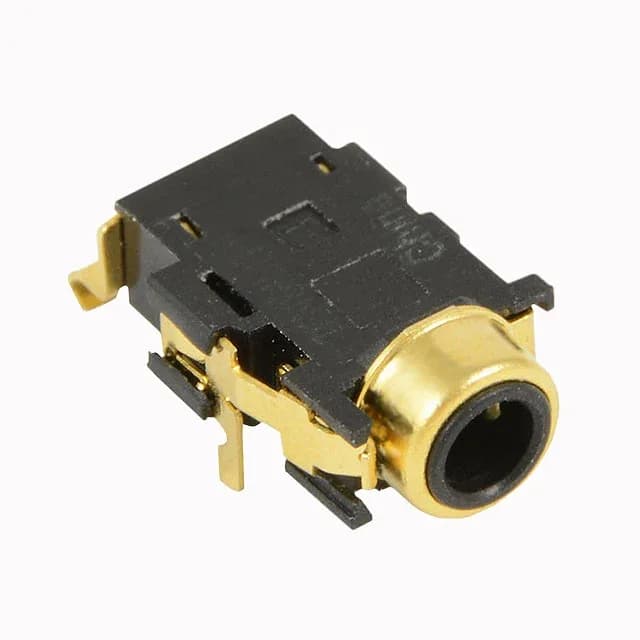

Tensility International Corp 54-00032
MPN54-00032
Active
CONN JACK 6COND 3.5MM R/A PCB
$2.7000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 30VDC |
| Current rating | 300 mA |
| Operating temperature | -10°C ~ 60°C |
| Body color | Gold, Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Contact material - plating | Gold |
| Gender | Female |
| Package | Tray |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | 6 Conductor |
| Actual diameter | 0.144\" (3.66mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 6 Conductors, 6 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
