Tensility International Corp 54-00080
MPN54-00080
Active

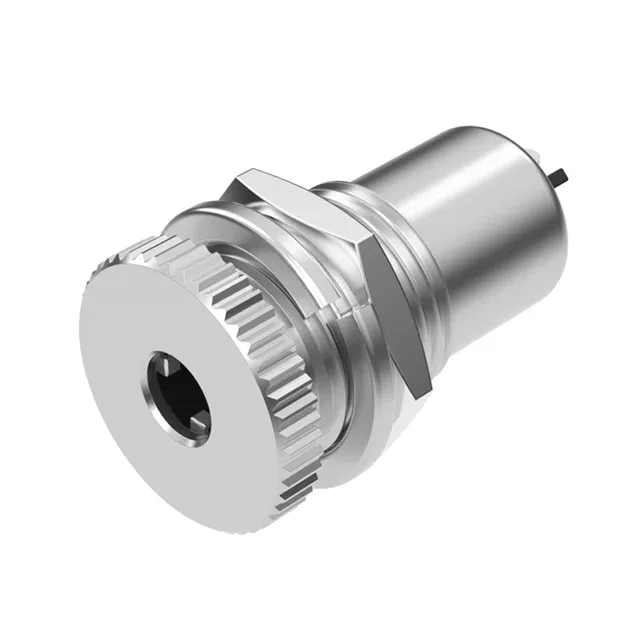

CONN JACK PNL MNT 3.5MM MONO
$2.57Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Phone Jack |
| Voltage - rated | 30VDC |
| Current rating | 300 mA |
| Operating temperature | -25°C ~ 85°C |
| Body color | Silver |
| Contact material | Phosphor Brass |
| Housing material | Brass |
| Insulation color | Black |
| Contact material - plating | Nickel |
| Gender | Female |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Shielding | Unshielded |
| Termination | Solder Eyelet(s) |
| Connector size | M9x0.75 |
| Signal lines | Mono |
| Actual diameter | 0.142\" (3.60mm) |
| Panel hole size | 0.362\" ~ 0.413\" (9.20mm ~ 10.50mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
