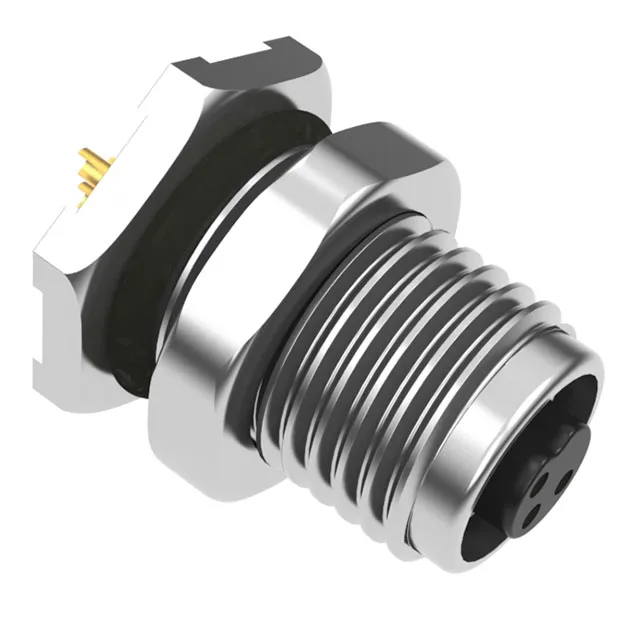

Tensility International Corp 54-00104
MPN54-00104
Active
CONN RCPT FMALE 3POS GOLD SOLDER
$6.13Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesM5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M5 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 60V |
| Current rating | 1A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyamide (PA66), Nylon 6/6, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Brass |
| Primary material | Metal |
| Package | Bulk |
| Orientation | Keyed |
| Termination | Solder |
| Applications | Automotive, Industrial, Instrumentation |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M5-3 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
