Tensility International Corp 54-00126
MPN54-00126
Active

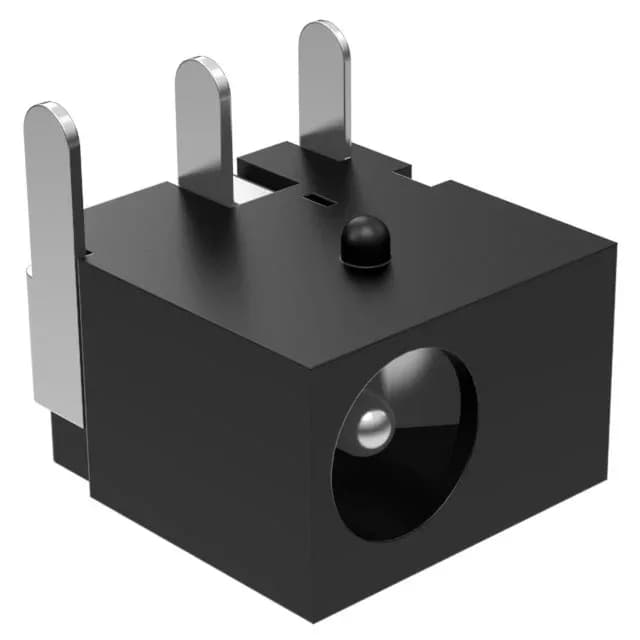

CONN JACK R/A PCB 3.5X1.35MM
$0.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 4 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Body material | Copper Alloy |
| Contact material | Brass, Stainless Steel |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | Black |
| Contact material - plating | Silver |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.053\" (1.35mm ID), 0.138\" (3.50mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 1.35mm ID (0.053\"), 3.50mm OD (0.138\") |
