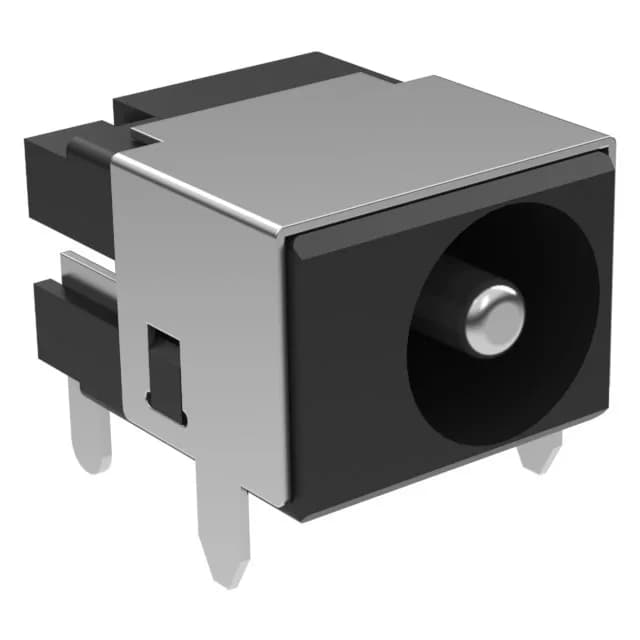

Tensility International Corp 54-00127
MPN54-00127
Active
CONN JACK R/A PCB 5.5X2.1MM
$0.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 6 A |
| Operating temperature | -25°C ~ 85°C |
| Body color | Black |
| Body material | Copper Alloy |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation color | Black |
| Mating length (Depth) | 0.323\" (8.20mm) |
| Contact material - plating | Silver |
All specifications
| Parameter | Value |
|---|---|
| Gender | Male |
| Package | Bulk |
| Features | Board Guide |
| Shielding | Shielded |
| Termination | Solder |
| Actual diameter | 0.083\" (2.10mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
