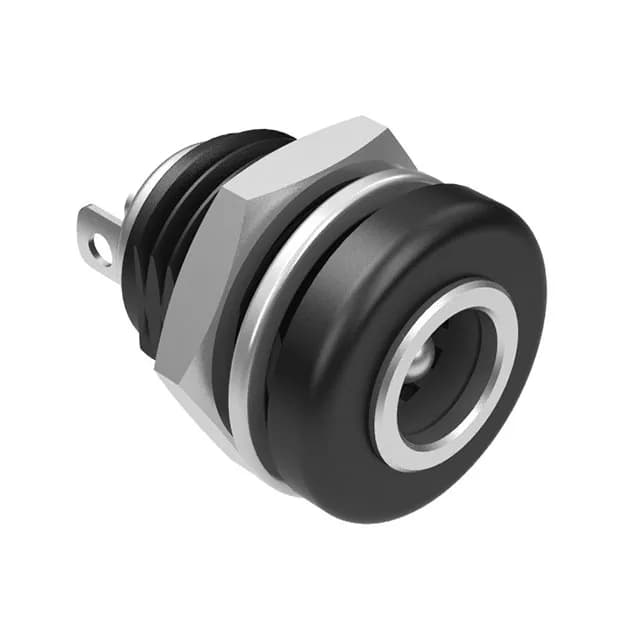

Tensility International Corp 54-00152
MPN54-00152
Active
CONN JACK PNL MNT 5.5X2.5MM ISO
$5.1800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 6 A |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -25°C ~ 105°C |
| Body color | Silver, Black |
| Housing material | Polyamide (PA), Nylon |
| Insulation color | Black |
| Contact material - plating | Nickel |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Mounting Hardware |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Connector size | M11x1 |
| Actual diameter | 0.098\" (2.50mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 2 Conductors, 2 Contacts |
| Industry recognized mating diameter | 2.50mm ID (0.098\"), 5.50mm OD (0.217\") |
