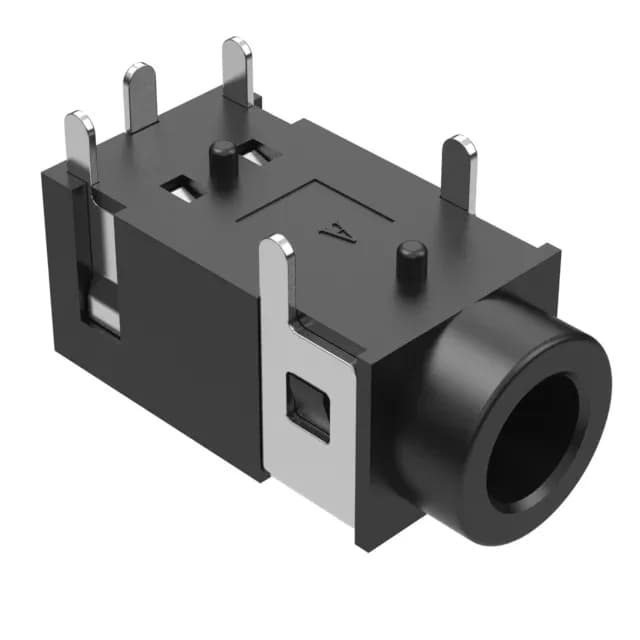

Tensility International Corp 54-00174
MPN54-00174
Active
CONN JACK 4COND 3.5MM R/A
$0.7800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 48VDC |
| Current rating | 0.5 A |
| Operating temperature | -40°C ~ 105°C |
| Body color | Black |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Contact material - plating | Silver |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Board Guide |
All specifications
| Parameter | Value |
|---|---|
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Internal switch | Does Not Contain Switch |
| Number of positions (Contacts) | 4 Conductors, 4 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
