Tensility International Corp 54-00176
MPN54-00176
Active

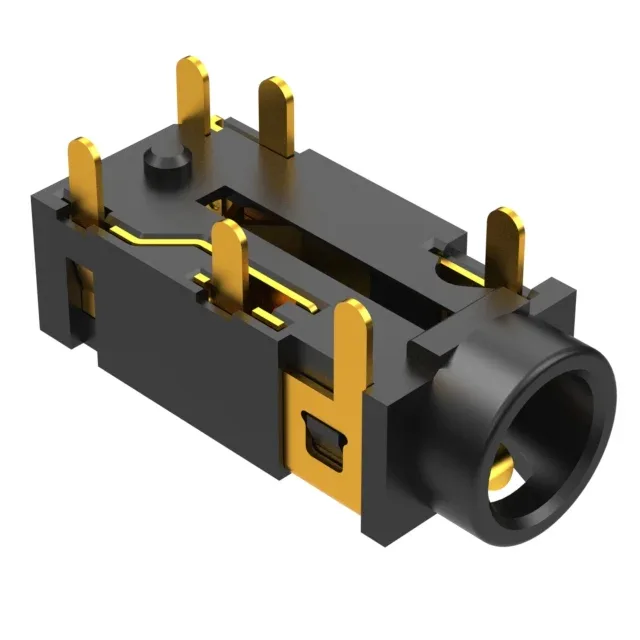

CONN JACK 4COND 3.5MM R/A
$0.91Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | Phone Jack |
| Voltage - rated | 48VDC |
| Current rating | 0.5 A |
| Operating temperature | -40°C ~ 105°C |
| Body color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Contact material - plating | Gold |
| Gender | Female |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Signal lines | Stereo (4 Conductor, TRRS) |
| Actual diameter | 0.142\" (3.60mm) |
| Number of positions (Contacts) | 4 Conductors, 6 Contacts |
| Industry recognized mating diameter | 3.50mm (0.141\", 1/8\", Mini Plug) - Headphone |
