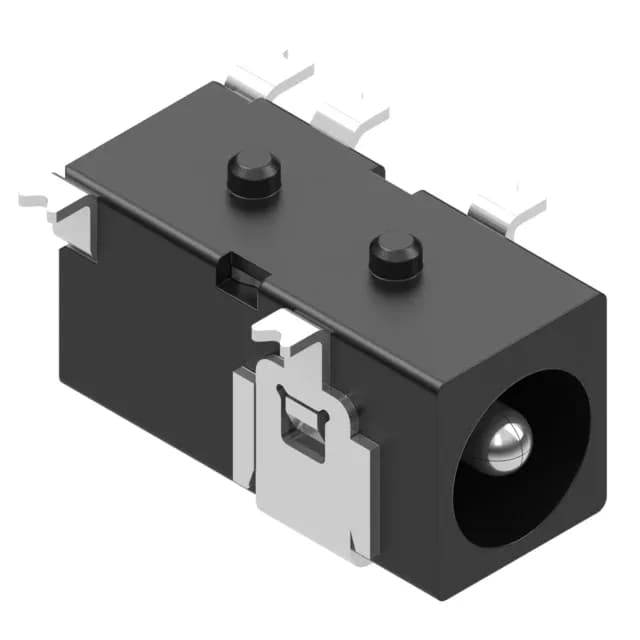

Tensility International Corp 54-00289
MPN54-00289
Active
CONN JACK PWR 4X1.7MM R/A SMD
$1.0800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 6.5 A |
| Operating temperature | -40°C ~ 105°C |
| Body color | Black |
| Contact material | Brass, Phosphor Bronze |
| Housing material | Polyamide (PA9T), Nylon 9T |
| Insulation color | Black |
| Contact material - plating | Silver |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Shielding | Unshielded |
| Termination | Solder |
| Actual diameter | 0.065\" (1.65mm ID), 0.173\" (4.40mm OD) |
| Internal switch | Single Switch |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 1.70mm ID (0.067\"), 4.00mm OD (0.157\") |
