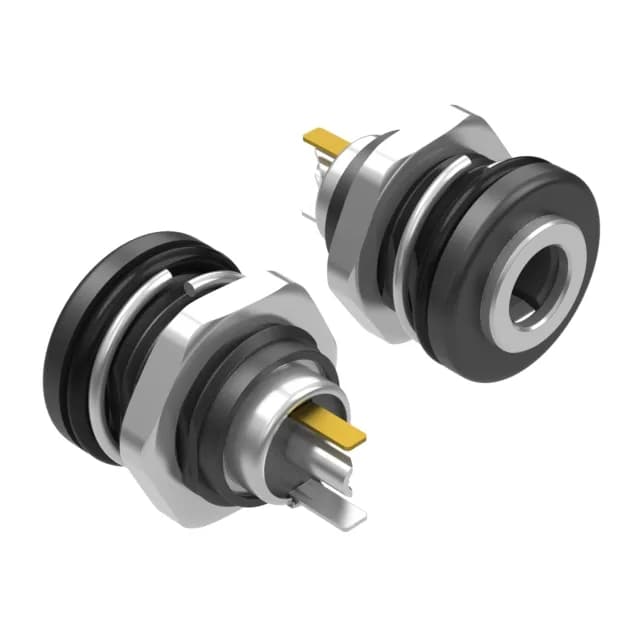

Tensility International Corp 54-00309
MPN54-00309
Active
CONN JACK PNL 5.5X2.1MM SWITCH
$8.6400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Panel Mount |
| Connector type | Jack |
| Voltage - rated | 48V |
| Current rating | 9 A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -30°C ~ 180°C |
| Material flammability rating | UL94 V-0 |
| Gender | Male |
| Package | Bulk |
| Features | Mounting Hardware, Thread Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Connector size | M12x1 |
| Actual diameter | 0.083\" (2.10mm ID), 0.217\" (5.50mm OD) |
| Internal switch | Single Switch, Normally Closed |
| Number of positions (Contacts) | 2 Conductors, 3 Contacts |
| Industry recognized mating diameter | 2.10mm ID (0.083\"), 5.50mm OD (0.217\") |
