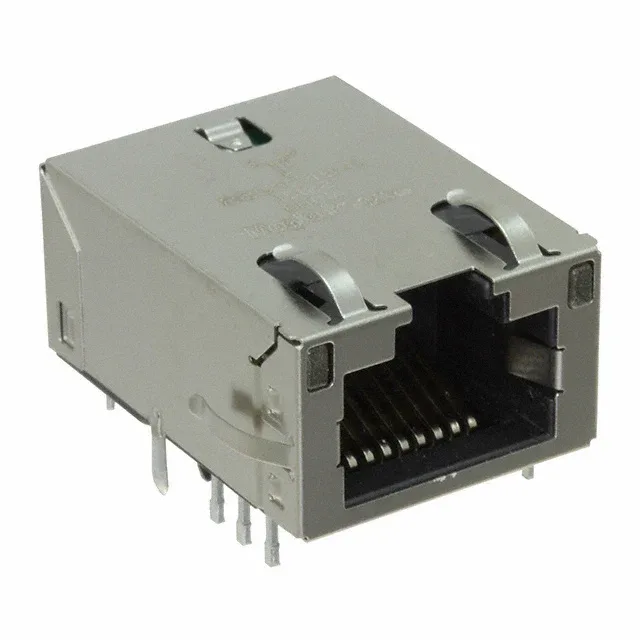

TRP Connector B.V. 2250548-1
MPN2250548-1
Active
CONN JACK 1PORT 1000 BASE-TX PCB
$7.47Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMagJack®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MagJack® |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 100°C |
| LED color | Yellow - Green, Orange |
| Shield material | Stainless Steel |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 0.451\" (11.45mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-TX, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of cores per jack | 4 |
