WAGO Corporation 2002-1611/1000-541
MPN2002-1611/1000-541
Active

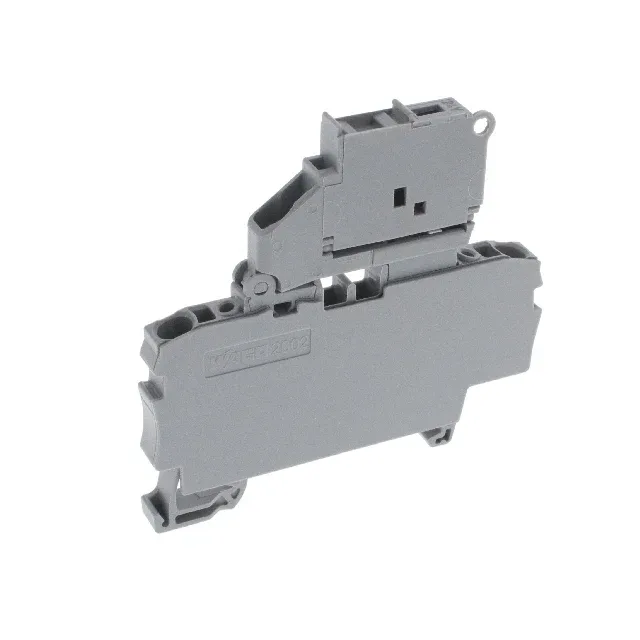

2-CONDUCTOR FUSE TERMINAL BLOCK;
$13.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTOPJOB®S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Disconnect |
| Series | TOPJOB®S |
| Fuse type | 5mm x 20mm |
| Disconnect type | Fuse, Lever |
| Voltage - UL | 30V |
| Voltage - IEC | 250V |
| Current - UL | 6.3 A |
| Current - IEC | 6.3 A |
| Terminal - width | 6.2mm |
| Wire gauge or range - AWG | 12-18 AWG |
| Wire gauge or range - mm2 | 0.75-4mm² |
| Color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Package | Bulk |
| Features | LED |
| Number of levels | 1 |
| Stripping length | 10mm ~ 12mm |
| Termination style | Push In, Spring |
| Positions | 2 |
