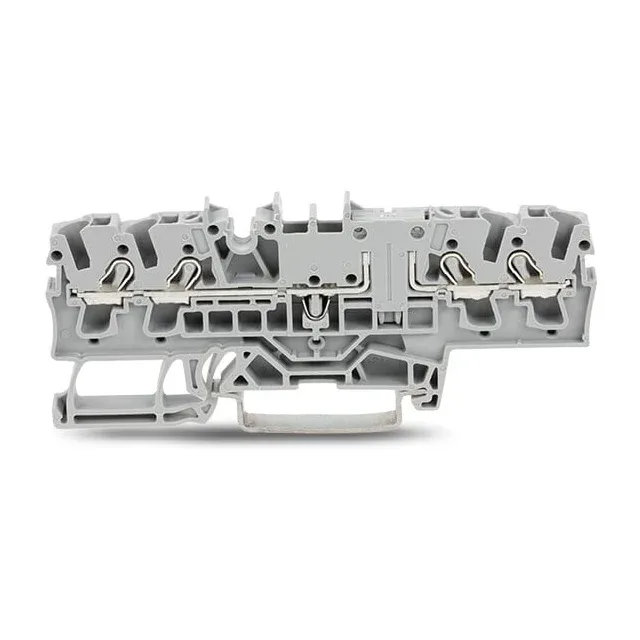

WAGO Corporation 2002-1801
MPN2002-1801
Active
4-CONDUCTOR THROUGH TERMINAL BLO
$9.71Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTOPJOB®S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | TOPJOB®S |
| Voltage - UL | 600V |
| Voltage - IEC | 400V |
| Current - UL | 15 A |
| Current - IEC | 16 A |
| Terminal - width | 5.2mm |
| Wire gauge or range - AWG | 12-22 AWG |
| Wire gauge or range - mm2 | 0.25-4mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 10mm ~ 12mm |
| Termination style | Push In, Spring |
| Positions | 4 |
