WAGO Corporation 2006-1304
MPN2006-1304
Active

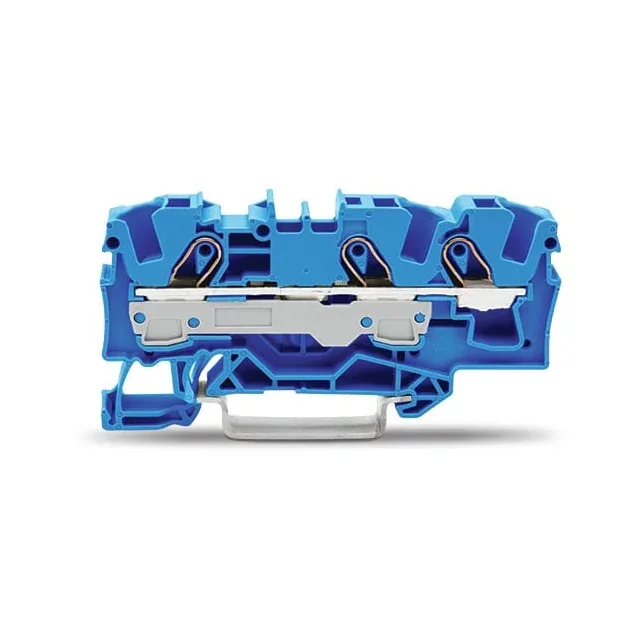

3-CONDUCTOR THROUGH TERMINAL BLO
$7.28Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTOPJOB®S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | TOPJOB®S |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 50 A |
| Current - IEC | 57 A |
| Terminal - width | 7.5mm |
| Wire gauge or range - AWG | 8-20 AWG |
| Wire gauge or range - mm2 | 0.5-10mm² |
| Color | Blue |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 13mm ~ 15mm |
| Termination style | Push In, Spring |
| Positions | 3 |
