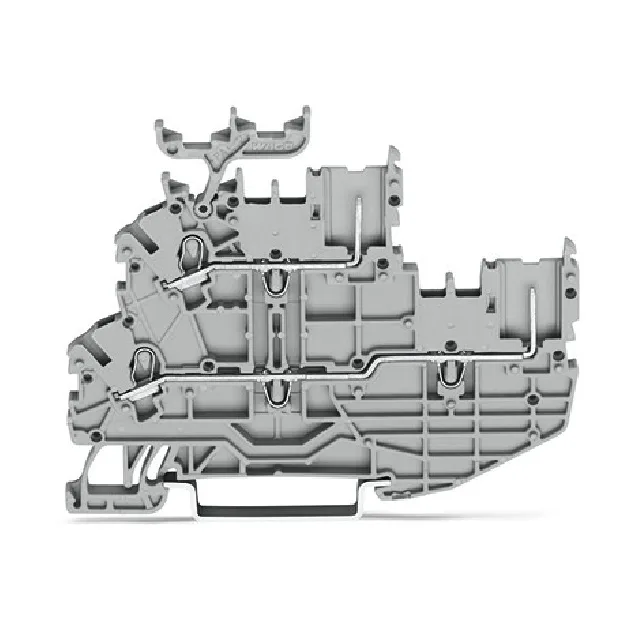

1-CONDUCTOR/1-PIN DOUBLE DECK RE
$6.2Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | X-COM® S-Mini |
| Mounting type | DIN Rail |
| Voltage - UL | 300 V |
| Voltage - IEC | 500 V |
| Current - UL | 15 A |
| Current - IEC | 13.5 A |
| Terminal - width | 3.5mm |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
| Height | 2.417\" (61.39mm) |
| Housing color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Length | 3.150\" (80.00mm) |
| Package | Box |
| Number of levels | 2 |
| Stripping length | 9mm ~ 11mm |
| Termination style | Plug Receptacles, Push In, Spring |
| Positions | 2 |
Sourcing this connector
WAGO Corporation 2020-2231 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against WAGO Corporation and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
