WAGO Corporation 2022-171
MPN2022-171
Active

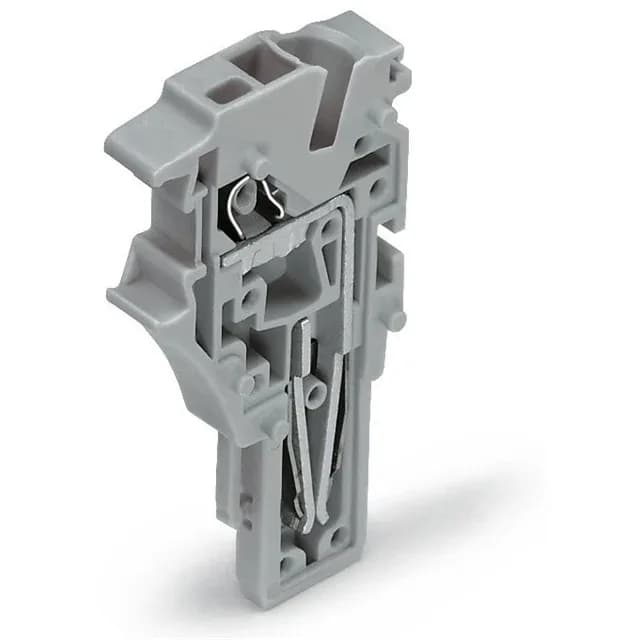

CENTER MODULE FOR 1-CONDUCTOR FE
$2.3400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesX-COM® S
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | X-COM® S |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 690 V |
| Current - UL | 20 A |
| Current - IEC | 32A |
| Plug wire entry | 180° |
| Wire strip length | 10-12mm |
| Wire gauge or range - AWG | 12-22 AWG |
| Wire gauge or range - mm2 | 0.25-4mm² |
| Color | Gray |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.882\" (22.40mm) |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 1 |
| Positions per level | 1 |
