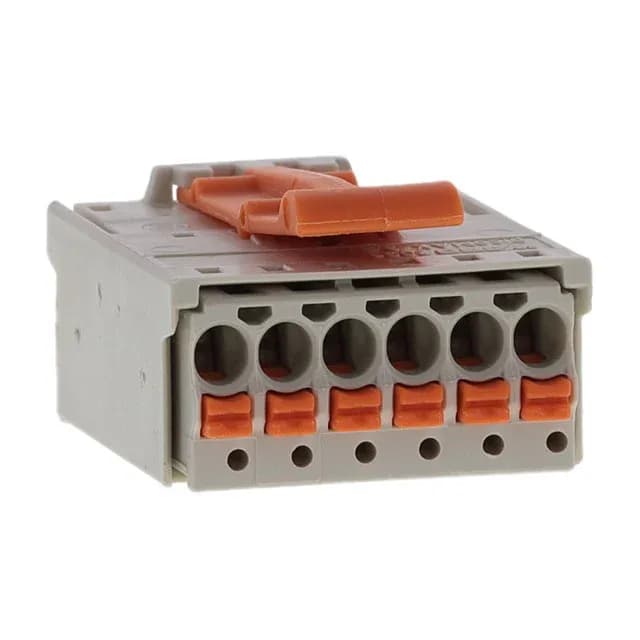

WAGO Corporation 2091-1526/002-000
MPN2091-1526/002-000
Active
1-CONDUCTOR MALE CONNECTOR; INTE
$7.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriespicoMAX® 3.5
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Male Pins |
| Series | picoMAX® 3.5 |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 160 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Plug wire entry | 180° |
| Wire strip length | 8-9mm |
| Wire gauge or range - AWG | 14-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Operating temperature | -60°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Gray |
| Contact material | Electrolytic Copper |
| Housing material | Polyphthalamide (PPA), Glass Filled |
| Insulation height | 0.626\" (15.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
