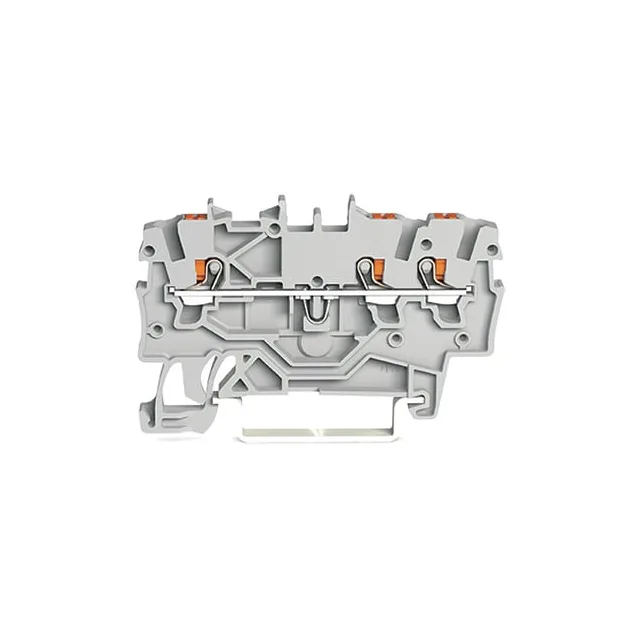

WAGO Corporation 2200-1301
MPN2200-1301
Active
3-CONDUCTOR THROUGH TERMINAL BLO
$2.93Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesTOPJOB®S, 2200
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Feed Through |
| Series | TOPJOB®S, 2200 |
| Voltage - UL | 600V |
| Voltage - IEC | 800V |
| Current - UL | 10 A |
| Current - IEC | 17.5 A |
| Terminal - width | 3.5mm |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
| Color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 9mm ~ 11mm |
| Termination style | Push In, Spring |
| Positions | 3 |
