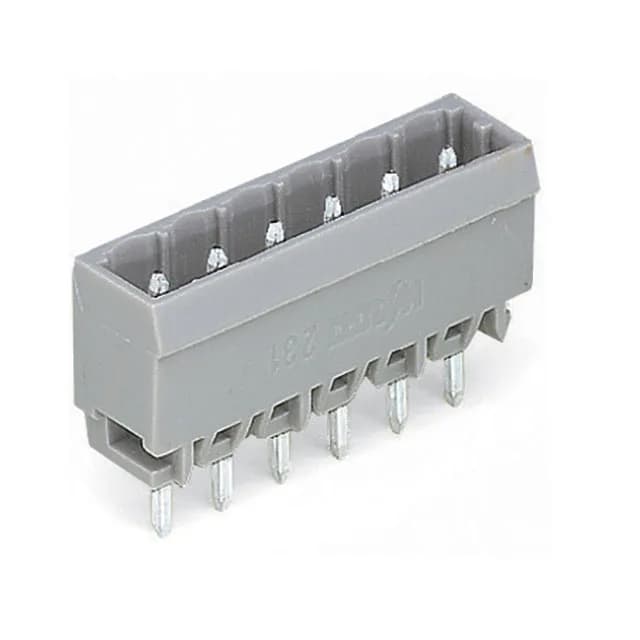

WAGO Corporation 231-136/001-000
MPN231-136/001-000
Active
THT MALE HEADER; 1.0 X 1.0 MM SO
$3.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMIDI Classic
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MCSMIDI Classic |
| Mounting | Through Hole |
| Voltage - UL | 600 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Operating temperature | -60°C ~ 100°C |
| Color | Gray |
| Contact material | Electrolytic Copper |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.472\" (12.00mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.197\" (5.00mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
