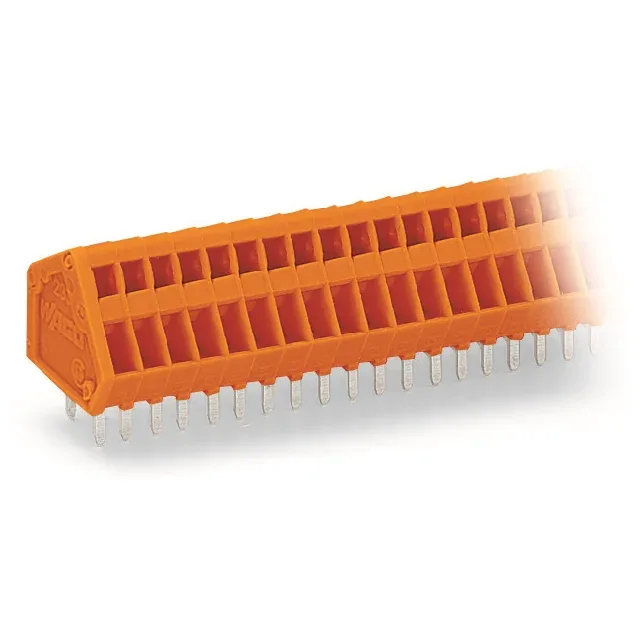

WAGO Corporation 233-403
MPN233-403
Active
PCB TERMINAL BLOCK; 0.5 MM; PIN
$2.49Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series233
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 233 |
| Mounting | Through Hole |
| Voltage | 150 V |
| Current | 4 A |
| Wire gauge | 20-28 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -60°C ~ 105°C |
| Color | Orange |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.100\" (2.54mm) |
| Package | Box |
| Number of levels | 1 |
| Mating orientation | 30° (150°) Angle with Board |
| Positions per level | 3 |
