WAGO Corporation 236-405/334-604/997-406
MPN236-405/334-604/997-406
Active

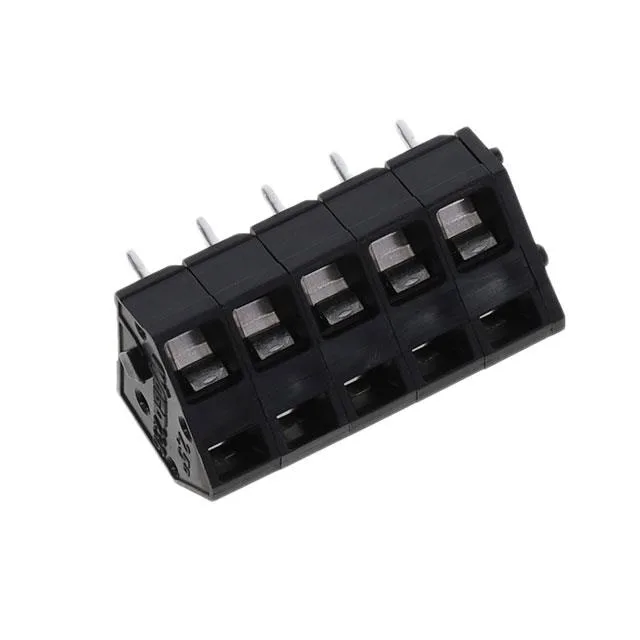

THR PCB TERMINAL BLOCK; 2.5 MM;
$5.78Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series236
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 236 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 15 A |
| Wire gauge | 12-28 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -60°C ~ 115°C |
| Color | Black |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.200\" (5.08mm) |
| Package | Box |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 5 |
