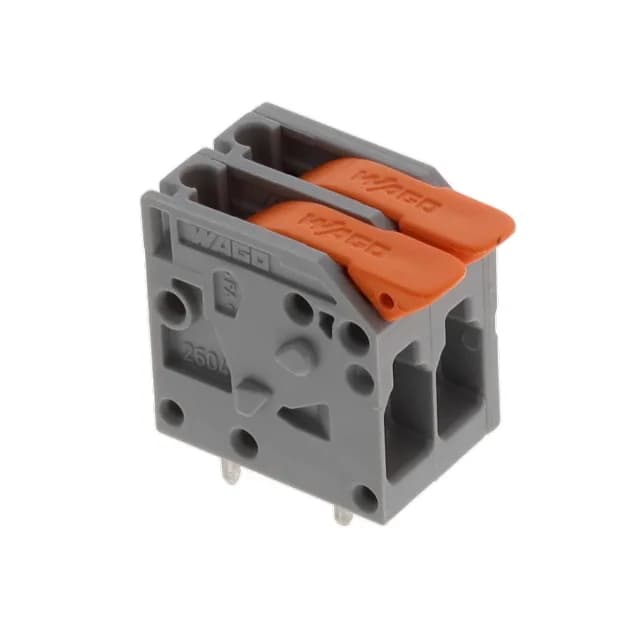

WAGO Corporation 2604-1102
MPN2604-1102
Active
TERM BLOCK 2POS SIDE ENTRY 5MM
$3.0200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2604
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2604 |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 20 A |
| Wire gauge | 12-24 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -60°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Box |
| Features | Lever Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
