WAGO Corporation 2626-1352
MPN2626-1352
Active

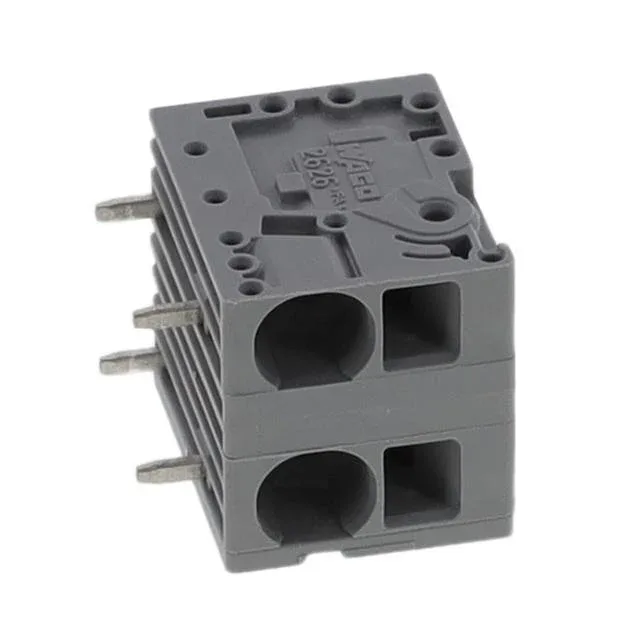

PCB TERMINAL BLOCK; 6 MM; PIN SP
$6.09Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series2626
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 2626 |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 38 A |
| Wire gauge | 8-24 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -60°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.492\" (12.50mm) |
| Package | Box |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 2 |
