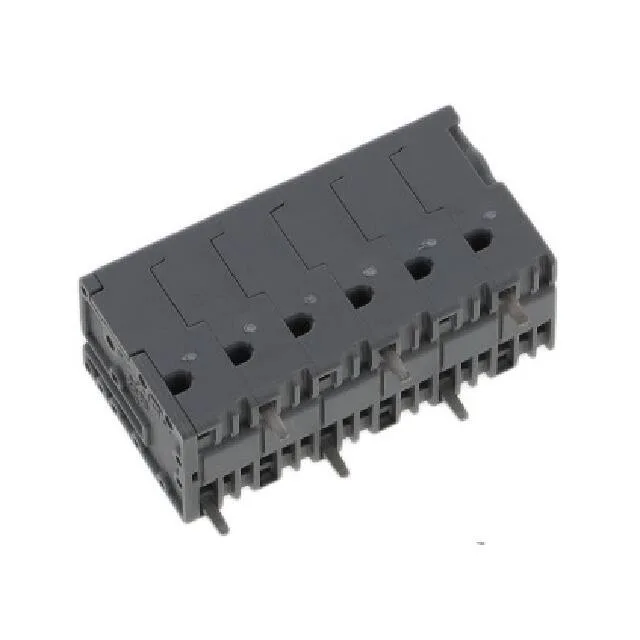

PCB TERMINAL BLOCK; 6 MM; PIN SP
$11.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Mounting type | Through Hole |
| Voltage | 600 V |
| Current | 38 A |
| Wire gauge | 8-24 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -60°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Pitch | 0.295\" (7.50mm) |
| Package | Box |
| Number of levels | 1 |
| Mating orientation | Vertical with Board |
| Positions per level | 6 |
Sourcing this connector
WAGO Corporation 2626-3106/020-000 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against WAGO Corporation and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
