WAGO Corporation 264-356
MPN264-356
Active

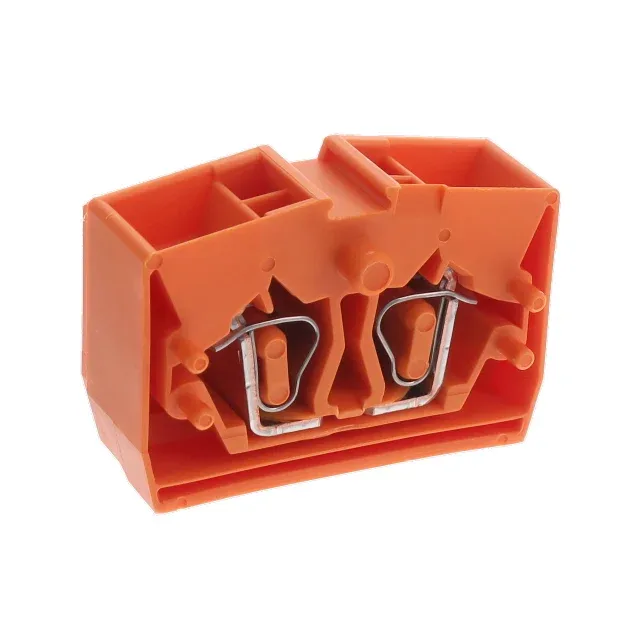

4-CONDUCTOR CENTER TERMINAL BLOC
$3.06Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Middle |
| Mounting | Direct Mount |
| Voltage - IEC | 800 V |
| Current - IEC | 24 A |
| Terminal - width | 10.0mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-2.5mm² |
| Height | 0.870\" (22.10mm) |
| Housing color | Orange |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Length | 1.260\" (32.00mm) |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 8mm ~ 9mm |
| Termination style | Push In, Spring |
| Positions | 4 |
