WAGO Corporation 2734-1105/327-000
MPN2734-1105/327-000
Active

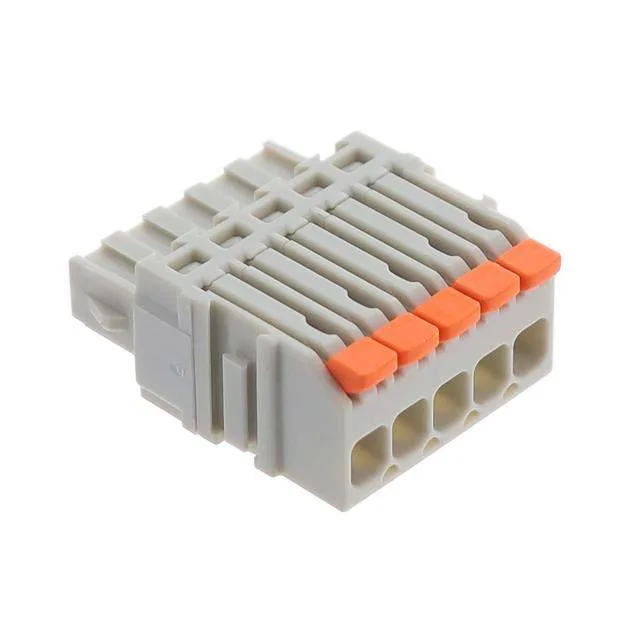

TERM BLOCK PLUG 5POS LEVER 14-26
$10.34Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMINI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | MCSMINI |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Plug wire entry | 180° |
| Wire strip length | 9-10mm |
| Wire gauge or range - AWG | 14-26 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
| Operating temperature | -60°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.393\" (9.98mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Lever Actuated |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
