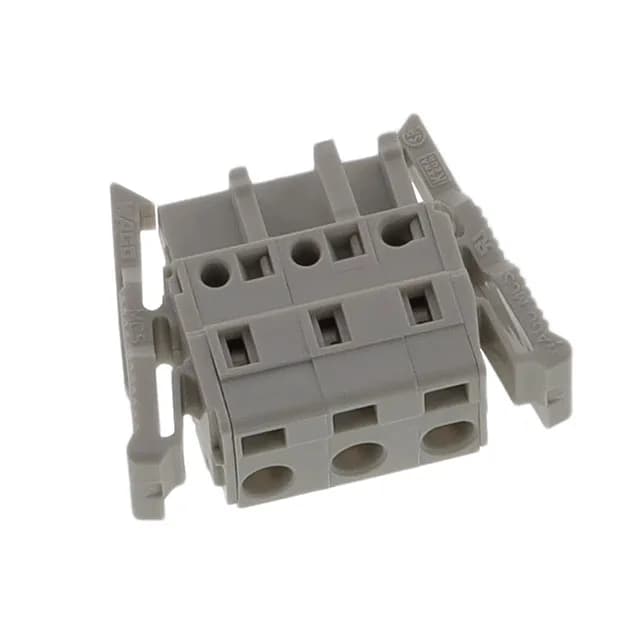

WAGO Corporation 721-203/037-000
MPN721-203/037-000
Active
1-CONDUCTOR FEMALE PLUG; 100% PR
$6.4800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMIDI
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | MCSMIDI |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 15 A |
| Current - IEC | 16A |
| Plug wire entry | 180° |
| Wire strip length | 8-9mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-2.5mm² |
| Operating temperature | -60°C ~ 85°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.563\" (14.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.295\" (7.50mm) |
| Package | Box |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
