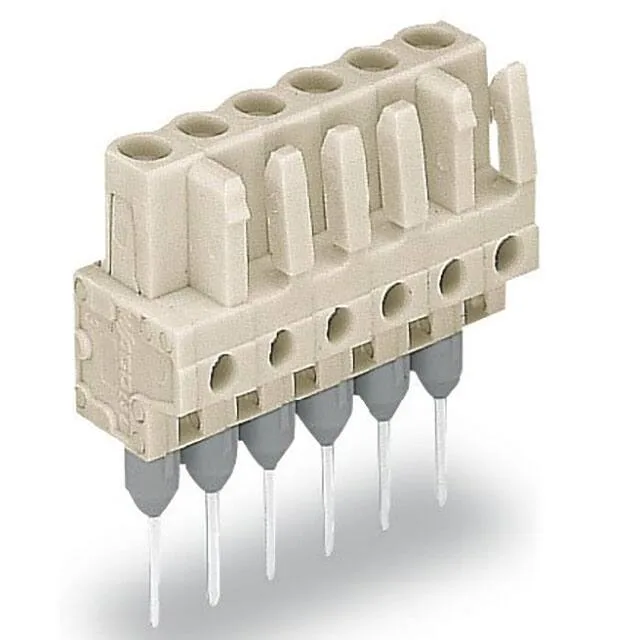

WAGO Corporation 722-135/005-000
MPN722-135/005-000
Active
FEMALE CONNECTOR FOR RAIL-MOUNT
$8.83Ref. price · indicative, final on quote
SeriesMCSMIDI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | MCSMIDI |
| Mounting | Through Hole |
| Voltage - UL | 600 V |
| Voltage - IEC | 630 V |
| Current - UL | 15 A |
| Current - IEC | 12A |
| Operating temperature | -60°C ~ 85°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.719\" (18.26mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Box |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.039\" (1.00mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
