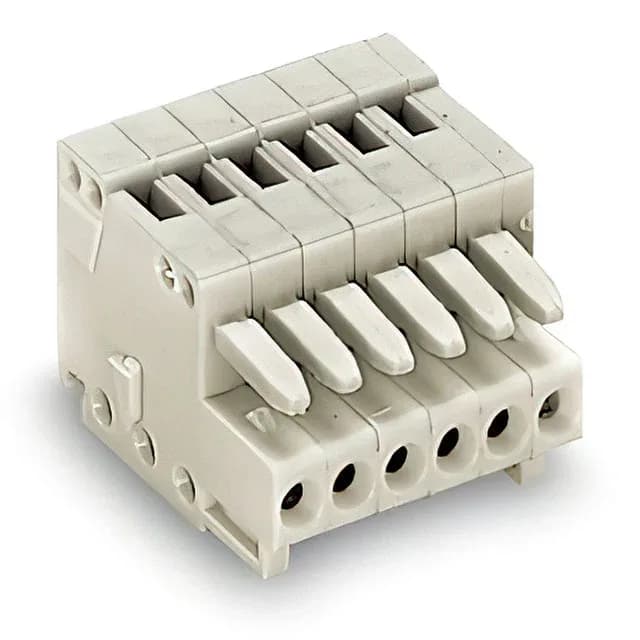

WAGO Corporation 733-110
MPN733-110
Active
1-CONDUCTOR FEMALE PLUG; 100% PR
$10.8000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMICRO
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | MCSMICRO |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 320 V |
| Current - UL | 4 A |
| Current - IEC | 6A |
| Plug wire entry | 180° |
| Wire strip length | 5-6mm |
| Wire gauge or range - AWG | 20-28 AWG |
| Wire gauge or range - mm2 | 0.08-0.5mm² |
| Operating temperature | -60°C ~ 100°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.465\" (11.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
| Package | Box |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
