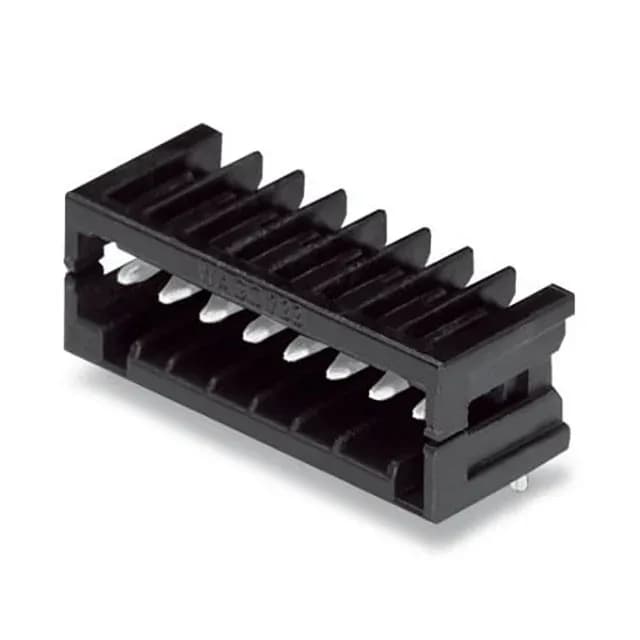

WAGO Corporation 733-370/105-604
MPN733-370/105-604
Active
THR MALE HEADER; 0.8 X 0.8 MM SO
$5.6900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMICRO
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MCSMICRO |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Voltage - IEC | 320 V |
| Current - UL | 4 A |
| Current - IEC | 6A |
| Operating temperature | -60°C ~ 100°C |
| Color | Black |
| Contact material | Electrolytic Copper |
| Housing material | Polyphthalamide (PPA), Glass Filled |
| Insulation height | 0.307\" (7.80mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.094\" (2.40mm) |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
