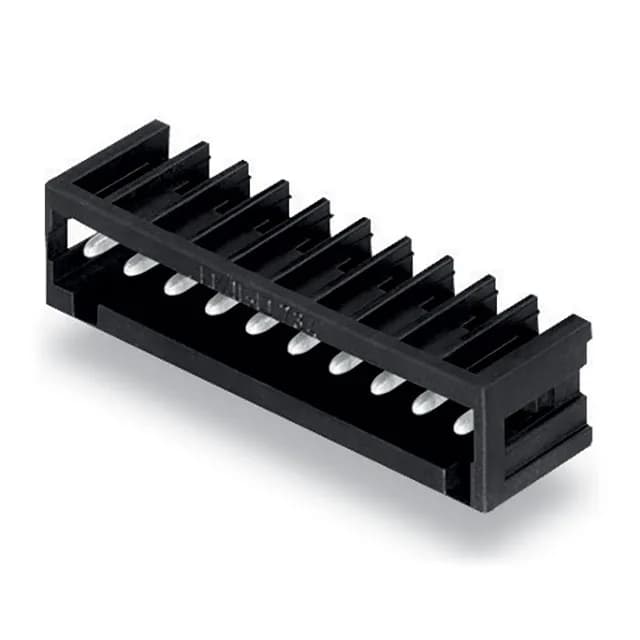

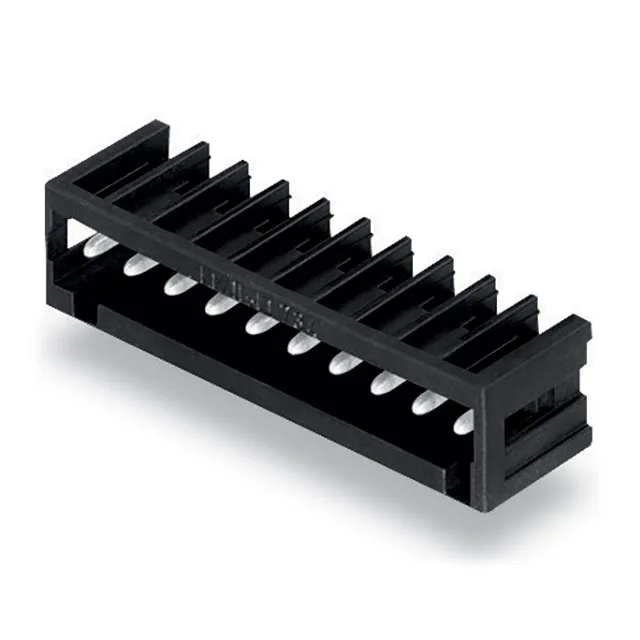

WAGO Corporation 734-164/105-604
MPN734-164/105-604
Active
THR MALE HEADER; 1.0 X 1.0 MM SO
$2.4600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMINI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MCSMINI |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Operating temperature | -60°C ~ 100°C |
| Color | Black |
| Contact material | Electrolytic Copper |
| Housing material | Polyphthalamide (PPA), Glass Filled |
| Insulation height | 1.122\" (28.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.094\" (2.40mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
