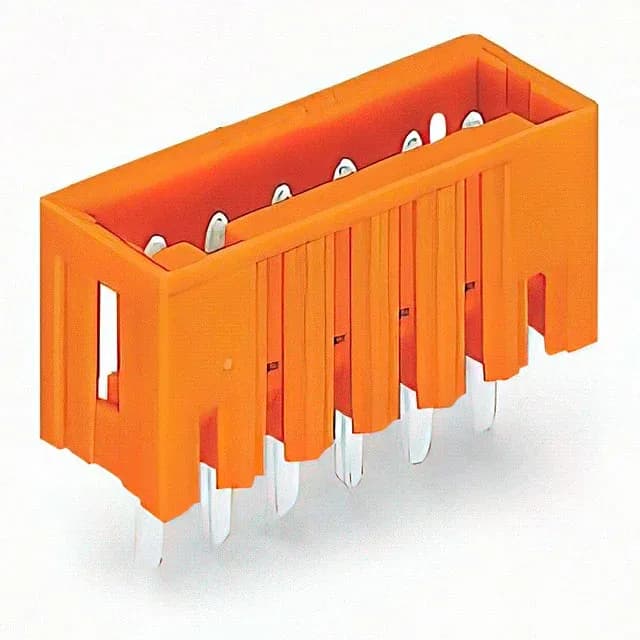

WAGO Corporation 734-234
MPN734-234
Active
TERM BLOCK HDR 4POS STR 3.81MM
$2.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMINI
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MCSMINI |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Operating temperature | -60°C ~ 100°C |
| Color | Orange |
| Contact material | Electrolytic Copper |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.406\" (10.31mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.177\" (4.50mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
