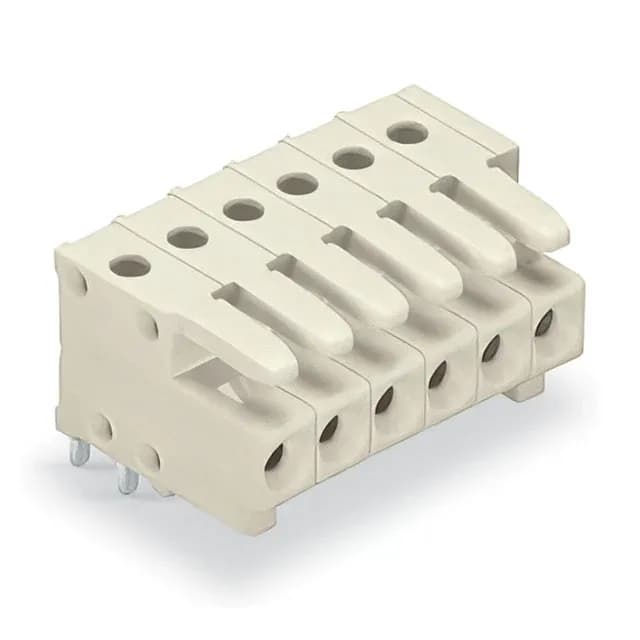

WAGO Corporation 734-532
MPN734-532
Active
THT FEMALE HEADER; 0.9 X 0.9 MM
$2.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMINI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | MCSMINI |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Operating temperature | -60°C ~ 100°C |
| Color | Gray |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.413\" (10.49mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Box |
| Features | Retention Latches (Wire Side) |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.150\" (3.81mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
