WAGO Corporation 745-871/006-000
MPN745-871/006-000
Active

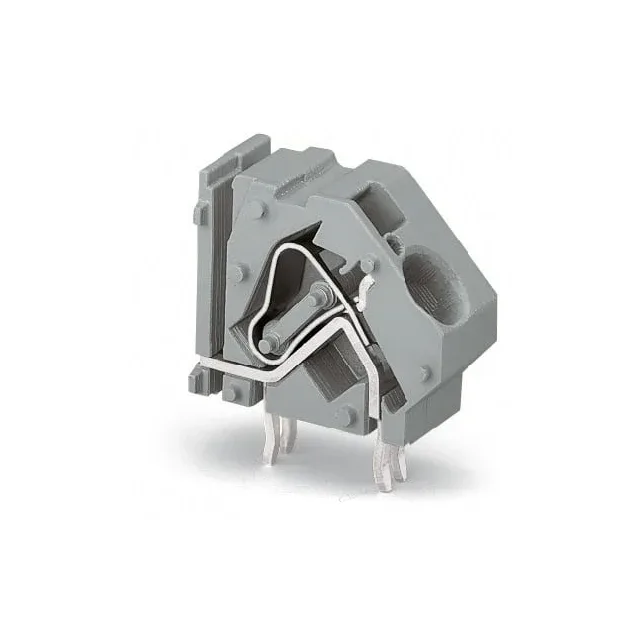

STACKABLE PCB TERMINAL BLOCK; 16
$2.96Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series745
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 745 |
| Mounting | Through Hole |
| Voltage | 600 V |
| Current | 65 A |
| Wire gauge | 6-24 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -60°C ~ 105°C |
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel - Nickel Plated |
| Contact material - plating | Electrolytic Copper - Tin Plated |
| Package | Box |
| Number of levels | 1 |
| Mating orientation | 45° (135°) Angle with Board |
| Positions per level | 1 |
