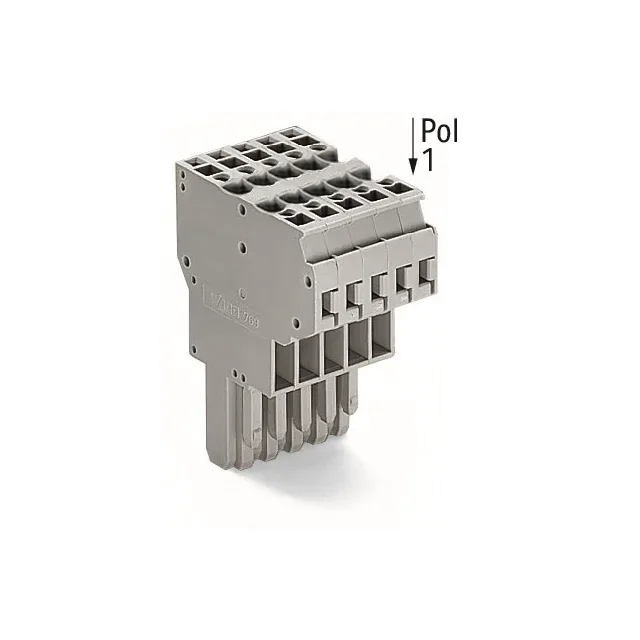

WAGO Corporation 769-125
MPN769-125
Active
2-CONDUCTOR FEMALE CONNECTOR; 4
$20.54Ref. price · indicative, final on quote
SeriesX-COM®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | X-COM® |
| Mounting | Free Hanging (In-Line) |
| Voltage - IEC | 500 V |
| Current - IEC | 32A |
| Plug wire entry | 180° |
| Wire strip length | 8-9mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-4mm² |
| Color | Gray |
| Contact material | Copper |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 1.413\" (35.89mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Box |
| Features | Retention Latches (Non-Wire Side) |
| Number of levels | 1 (Mate), 2 (Input) |
| Termination style | Screwless - Push-In Spring |
| Positions | 5 (Mate), 10 (Input) |
| Positions per level | 5 (Mate), 10 (Input) |
