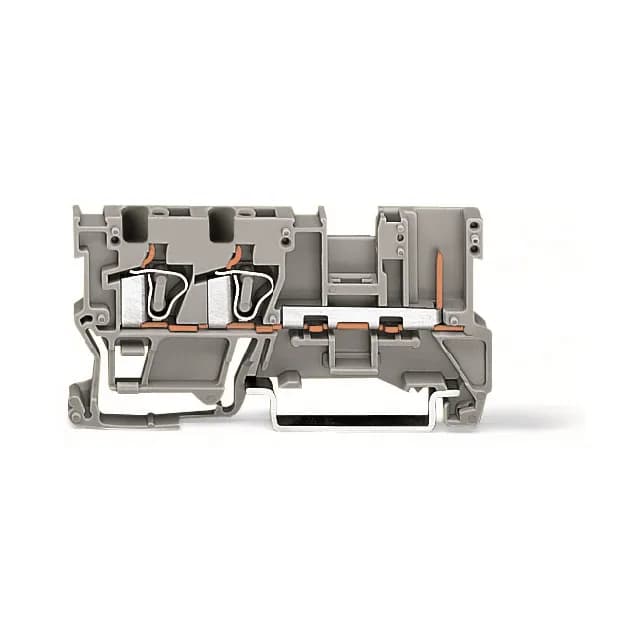

WAGO Corporation 769-251
MPN769-251
Active
2-CONDUCTOR/1-PIN CARRIER TERMIN
$5.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesX-COM®
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection |
| Series | X-COM® |
| Mounting | DIN Rail |
| Voltage - IEC | 500 V |
| Current - IEC | 32 A |
| Terminal - width | 5.0mm |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-4mm² |
| Height | 1.122\" (28.50mm) |
| Housing color | Gray |
| Material - insulation | Polyamide (PA66), Nylon 6/6 |
| Material flammability rating | UL94 V-0 |
| Length | 2.720\" (69.09mm) |
| Package | Box |
| Number of levels | 1 |
| Stripping length | 8mm ~ 9mm |
| Termination style | Plug Receptacles, Push In, Spring |
| Positions | 2 |
