WAGO Corporation 770-243
MPN770-243
Active

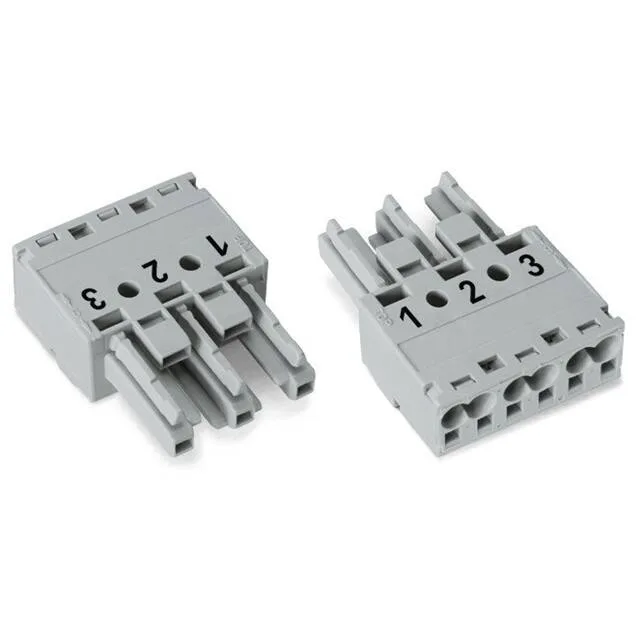

SOCKET 3-POLE, GRAY
$4.36Ref. price · indicative, final on quote
SeriesWINSTA® MIDI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | WINSTA® MIDI |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 250 V |
| Current - UL | 23 A |
| Current - IEC | 25A |
| Plug wire entry | 180° |
| Wire strip length | 9mm |
| Wire gauge or range - AWG | 12-20 AWG |
| Wire gauge or range - mm2 | 0.5-4mm² |
| Operating temperature | -35°C ~ 85°C |
All specifications
| Parameter | Value |
|---|---|
| Color | Gray |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.508\" (12.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.394\" (10.00mm) |
| Package | Box |
| Features | Locking Feature |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 3 |
| Positions per level | 3 |
