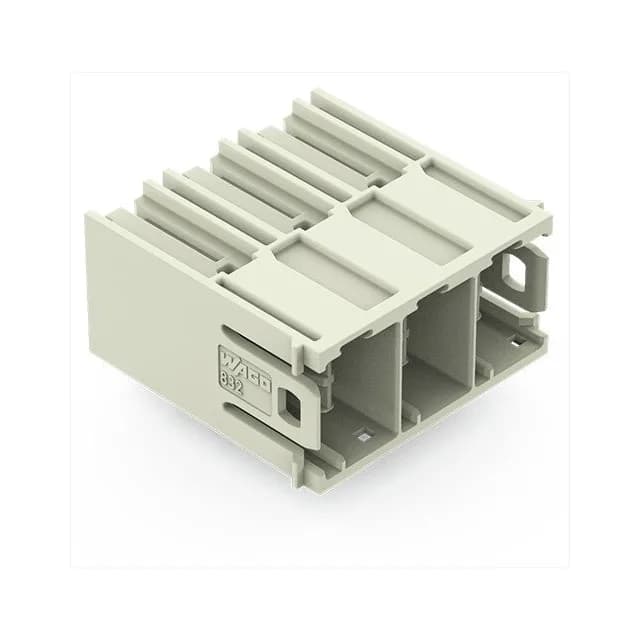

WAGO Corporation 832-3623
MPN832-3623
Active
THT MALE HEADER; 1.2 X 1.2 MM SO
$8.2500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMCSMAXI 16
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MCSMAXI 16 |
| Mounting | Through Hole |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 85 A |
| Current - IEC | 76A |
| Operating temperature | -60°C ~ 120°C |
| Color | Gray |
| Contact material | Electrolytic Copper |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.650\" (16.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.400\" (10.16mm) |
| Package | Box |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.157\" (4.00mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Silver |
