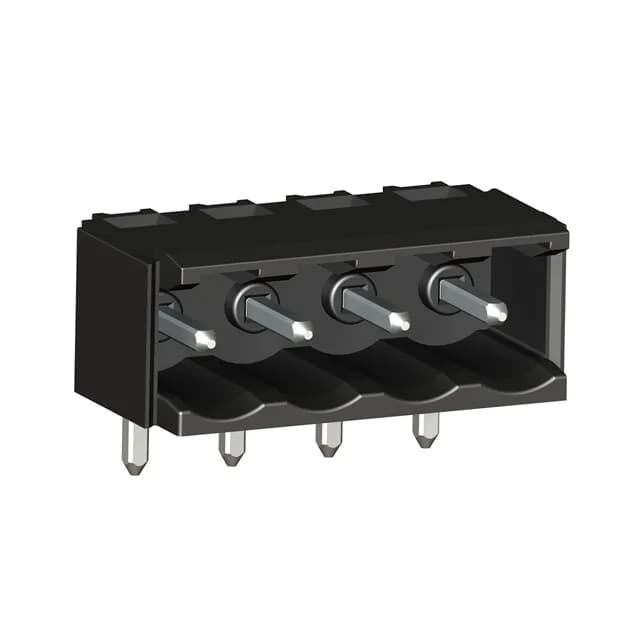

WECO Electrical Connectors Inc. 120-M-211/06
MPN120-M-211/06
Active
CONN; TERMBLK; PCB; HEADER; SNGL
$1.9900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 100°C |
| Color | Gray |
| Contact material | Brass |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.331\" (8.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
