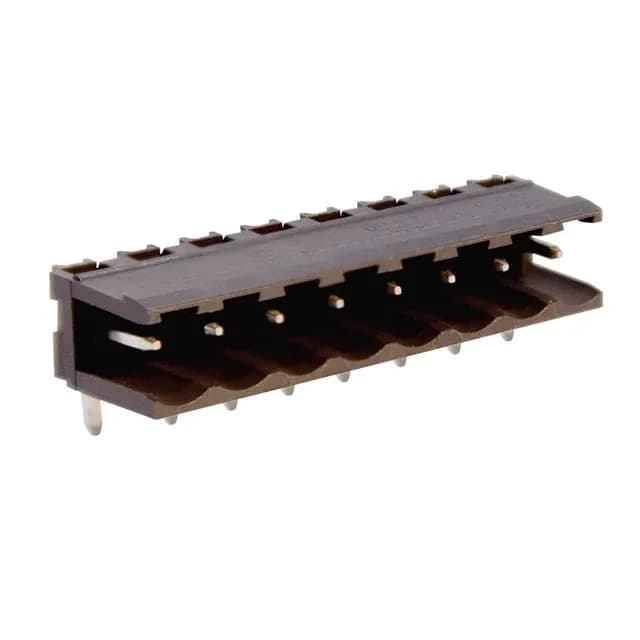

WECO Electrical Connectors Inc. 121-M-111/08
MPN121-M-111/08
Active
CONN; TERMBLK; PCB; HEADER; PLUG
$2.6300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (2 Side) |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 100°C |
| Color | Gray |
| Contact material | Brass |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.331\" (8.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 8 |
| Positions per level | 8 |
| Contact mating finish | Tin |
