WECO Electrical Connectors Inc. 327-HDS/04-BA
MPN327-HDS/04-BA
Active

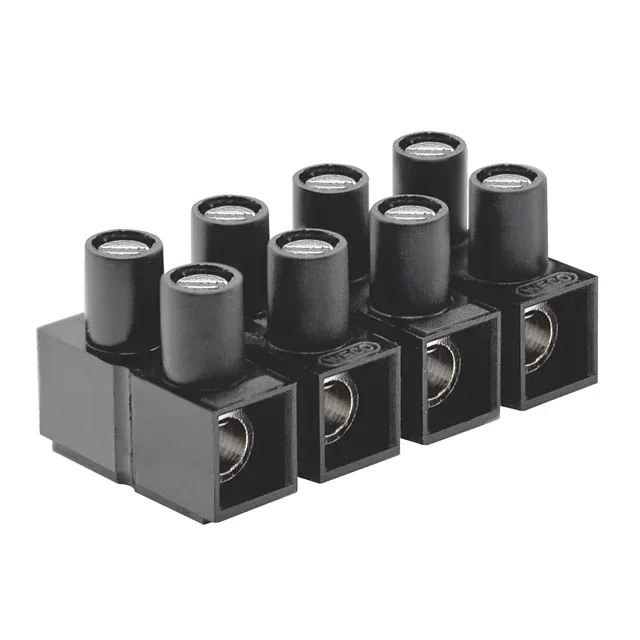

TERMINAL STRIPS FOR PANEL / CHAS
$8.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Barrier type | Enclosed |
| Mounting | Chassis, Panel |
| Terminal block type | Eurostyle Terminal Strip |
| Voltage rating | 300V |
| Current rating | 80A |
| Wire gauge | 4-14 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 8 |
| Terminal screw material | Steel |
| Operating temperature | -40°C ~ 100°C |
| Color | White |
| Material - insulation | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.571\" (14.50mm) |
| Package | Bulk |
| Rows | 2 |
| Top termination | Screws |
| Bottom termination | Closed |
| Number of circuits | 4 |
