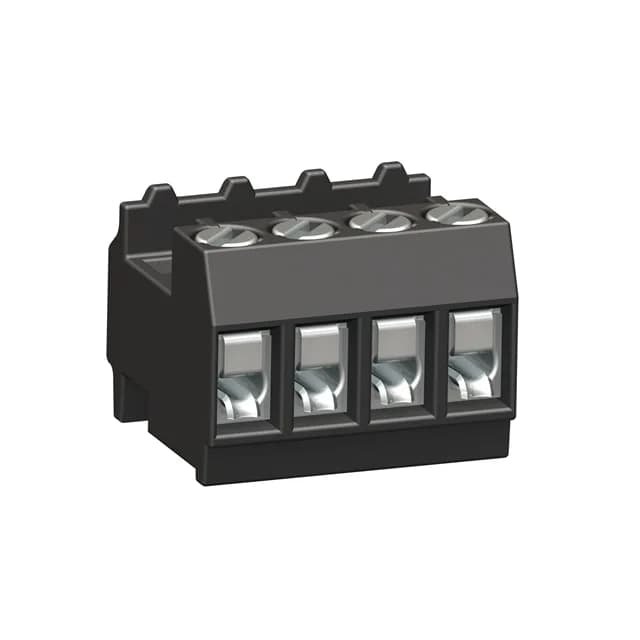

WECO Electrical Connectors Inc. 930-FL-DS/03
MPN930-FL-DS/03
Active
SCREW CONNECTORS FOR PRINTED CIR
$2.7900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 6 A |
| Plug wire entry | 90° and 180° |
| Wire strip length | 5mm |
| Wire gauge or range - AWG | 18-30 AWG |
| Wire gauge or range - mm2 | 0.75mm² |
| Operating temperature | -40°C ~ 100°C |
| Color | Gray |
| Contact material | Bronze |
| Housing material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.409\" (10.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Screw size | M2 |
| Torque - screw | 0.2 Nm (1.7 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
