Weidmüller 1331750000
MPN1331750000
Active

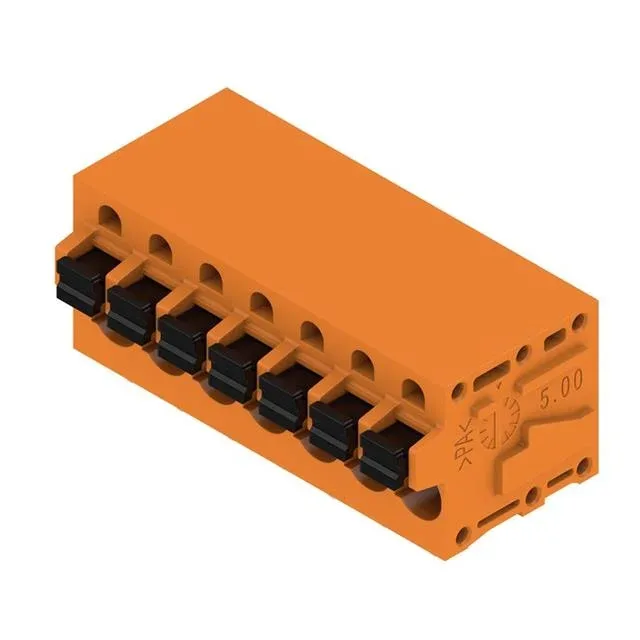

LMF 5.00/07/90 3.5SN OR BX
$4.52Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate LMF
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Omnimate LMF |
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 20 A |
| Wire gauge | 12-24 AWG |
| Wire termination | Screwless - Leg Spring, Push-In Spring |
| Operating temperature | -50°C ~ 120°C |
| Color | Orange |
| Housing material | Polyamide (PA), Nylon |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Interlocking (Side) |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 7 |
