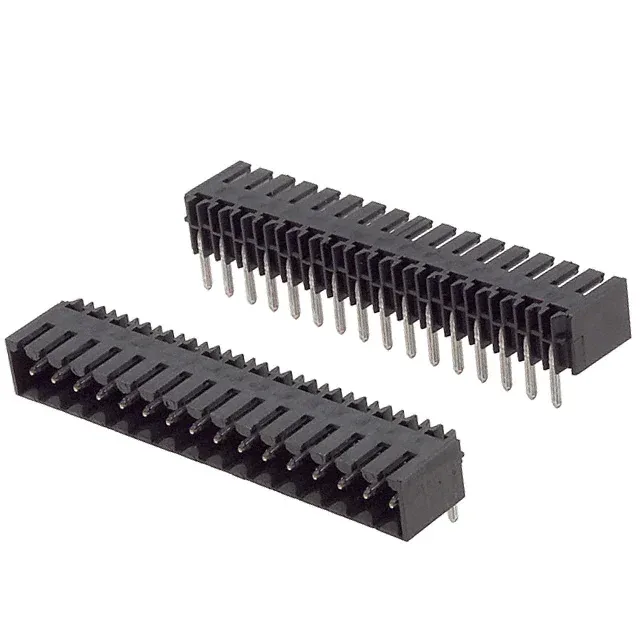

Weidmüller 1614190000
MPN1614190000
Active
TERM BLOCK HDR 16POS 90DEG 3.5MM
$7.42Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesOmnimate SL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | Omnimate SL |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 125 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Operating temperature | -20°C ~ 100°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.295\" (7.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.177\" (4.50mm) |
| Positions | 16 |
| Positions per level | 16 |
| Contact mating finish | Tin |
