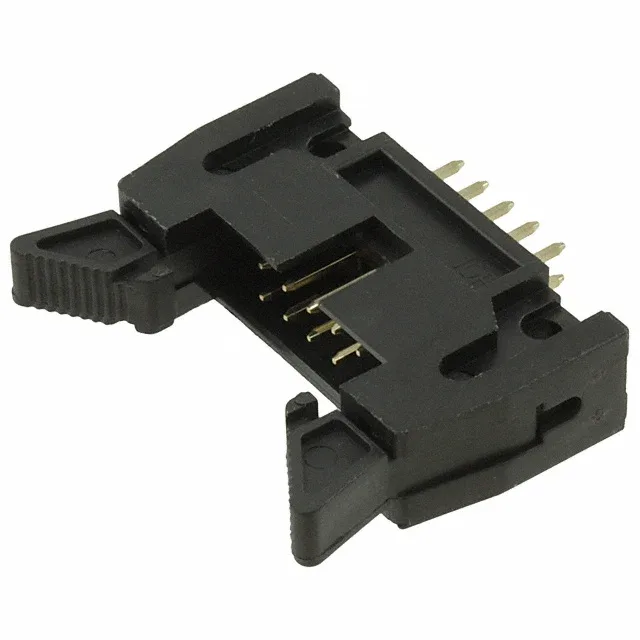

Würth Elektronik 61201022021
MPN61201022021
Active
CONN HEADER VERT 10POS 2.54MM
$1.01Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesWR-BHD
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | WR-BHD |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -40°C ~ 125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.669\" (17.00mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.224\" (5.70mm) |
