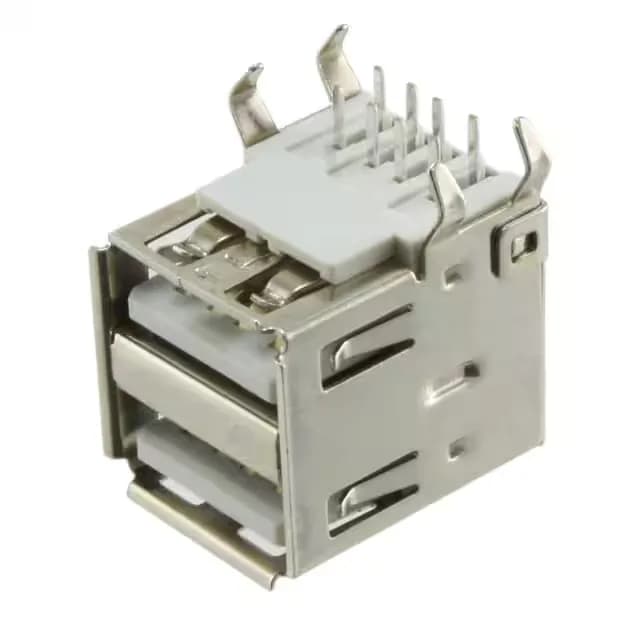

Würth Elektronik WR-COM USB-A (USB TYPE-A) stacked receptacle, order code 61400826021, 8 contacts, 2 ports, 1.5 A, 30 V, gold contact finish, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A), Stacked |
| Voltage - rated | 30V |
| Current rating | 1.5A |
| Positions | 8 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | White |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 2 |
The 61400826021 is the 8-contact, 2-port stacked member of Würth Elektronik's WR-COM USB-A receptacle line, specified for USB 2.0.
Rated for 1500 mating cycles, the gold contact finish supports repeated connect-disconnect duty without exposing base metal.
Würth Elektronik is the manufacturer.
