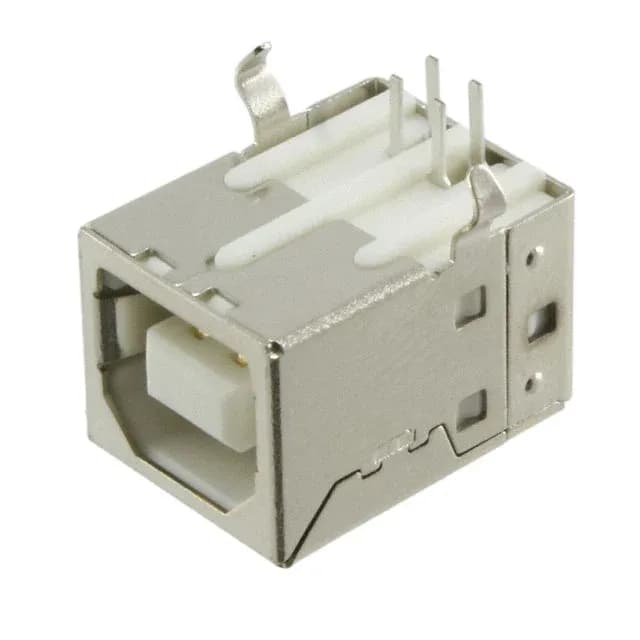

Würth Elektronik WR-COM USB-B (USB TYPE-B) receptacle, order code 61400416121, 4 contacts, USB 2.0, 1.5 A, 30 V, gold-plated contacts, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-B (USB TYPE-B) |
| Voltage - rated | 30V |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -40°C ~ 105°C |
| Insulation color | White |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 1500 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 61400416121 is the 4-contact USB-B member of Würth Elektronik's WR-COM USB receptacle line, specified for USB 2.0 duty.
Within the WR-COM USB series the 61400416121's 4-contact USB-B layout shares the same 1.5 A rating, gold plating, board lock, and shielded shell as the 4-contact USB-A siblings 61400416021 (right-angle) and 614004134726 / 614004135023 (vertical).
