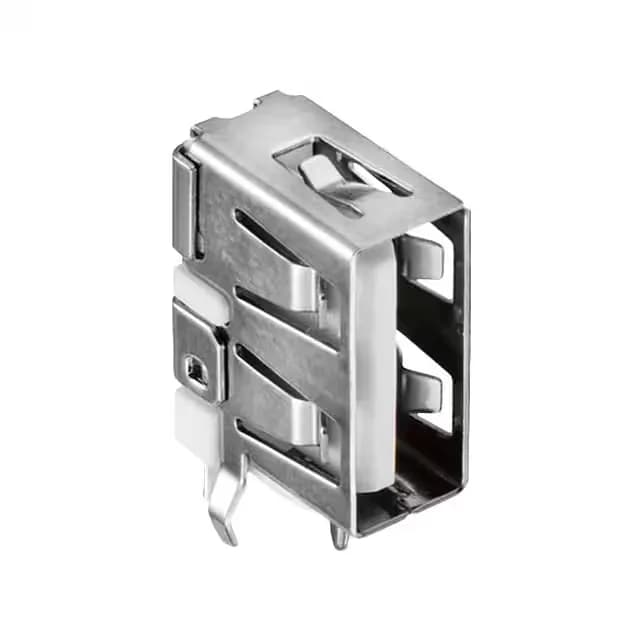

Würth Elektronik WR-COM USB-A receptacle, order code 614004184726, 4 contacts, USB 2.0, 2 A, 30 VAC, gold-plated contacts, shielded, through-hole right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 2A |
| Positions | 4 |
| Mounting feature | Vertical |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | White |
| Shell (Shielding material) | Brass |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 614004184726 is a 4-contact USB-A receptacle in Würth's WR-COM series, rated for USB 2.0 at 2 A and 30 VAC. Gold-plated contacts, a shielded brass shell, and a board lock secure the through-hole right-angle mount to the PCB.
The 614004184726 is rated for 5000 mating cycles, compared to 1500 cycles for the sibling 614004134726 and 614004135023 — the higher cycle life suits applications requiring frequent reconnection.
