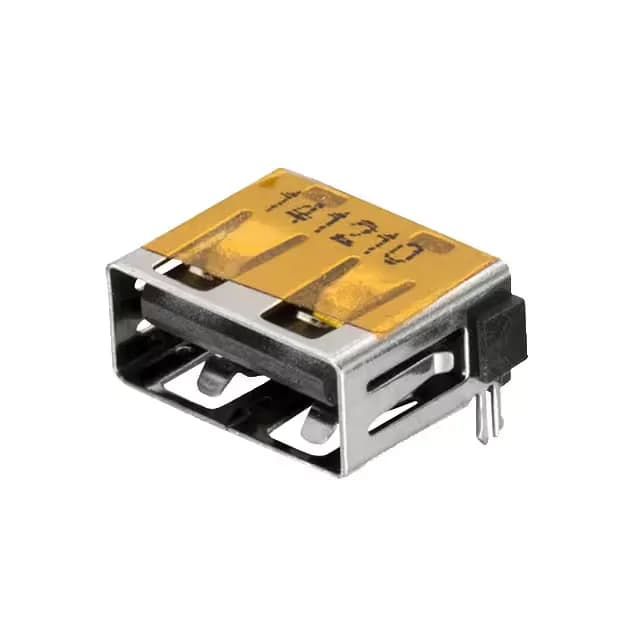

Würth Elektronik WR-COM USB-A (USB TYPE-A) receptacle, order code 614104190121, 4 contacts, 1.5 A, 30 VAC, gold-plated contacts, through-hole right-angle, solder termination, unshielded.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Board Edge, Cutout; Through Hole, Right Angle |
| Connector type | USB-A (USB TYPE-A) |
| Voltage - rated | 30VAC |
| Current rating | 1.5A |
| Positions | 4 |
| Mounting feature | Horizontal |
| Operating temperature | -55°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Board Lock |
| Shielding | Unshielded |
| Termination | Solder |
| Mating cycles | 5000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 614104190121: Gold-plated contacts support 5000 mating cycles, and the through-hole right-angle mounting with board lock provides retention during wave soldering.
The 614104190121 omits the shell shielding found on the sibling 614104150121, but delivers 5000 mating cycles versus the 1500 cycles of the shielded variant — the unshielded contact beam sees less insertion force per cycle.
The 614104150121 is a shielded sibling in the same WR-COM series with identical 4-contact USB-A layout, gold plating, and 1.5 A rating, but its mating cycle rating is 1500 cycles versus 5000 for the unshielded 614104190121.
