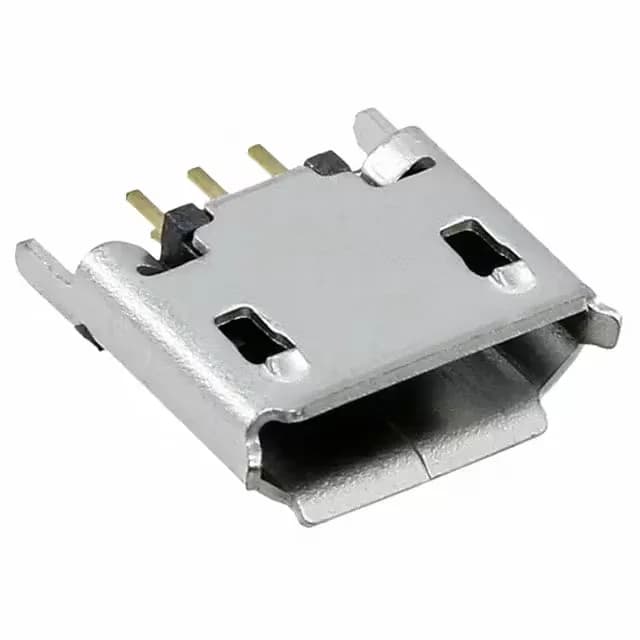

Würth Elektronik WR-COM USB micro B receptacle, order code 614105150721, 5 contacts, single port, vertical through-hole, shielded, gold-plated contacts, solder termination, USB 2.0.
| Parameter | Value |
|---|---|
| Series | WR-COM |
| Mounting | Through Hole |
| Connector type | USB - micro B |
| Voltage - rated | 30VAC |
| Current rating | 1A, 1.8A |
| Positions | 5 |
| Mounting feature | Vertical |
| Operating temperature | -40°C ~ 85°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The 614105150721 is the 5-contact USB micro B receptacle in Würth Elektronik's WR-COM series, mounted vertical through-hole for board-edge or panel-mount applications. Rated 30VAC at 1A per contact (1.8A on select pins), with gold-plated contacts and a shielded steel/stainless shell rated for 10000 mating cycles.
Yes — both are 5-contact vertical through-hole receptacles in the WR-COM series with the same footprint and shell. The 614105150621 is a micro AB receptacle; the 614105150721 is micro B. The mechanical fit is identical.
